The animal feed pellet mill machine production line is designed to convert raw materials such as corn, soybean meal, wheat bran, grass powder, and other feed ingredients into high-quality feed pellets. With a production capacity of 1000kg/h, this complete feed processing line is suitable for small and medium-sized feed factories, livestock farms, poultry farms, and agricultural cooperatives.
To meet different production requirements, we provide three configuration options. The overall production process remains the same, while the cooling system and pellet machine can be customized according to pellet quality requirements and investment budgets.
Standard production process of animal feed pellet mill machine
The feed pellet machine production line follows a complete feed manufacturing process, including:
raw materials → crushing → mixing → pelletizing → cooling → conveying → packaging
Feed ingredients are first ground into fine powder, then mixed uniformly and compressed into pellets by the feed pellet machine. After cooling, the finished pellets are conveyed to the weighing and packing system for storage or sale. This streamlined process ensures high production efficiency, consistent pellet quality, and reliable feed manufacturing performance.
1000kg/h animal feed pellet mill machine production line solution

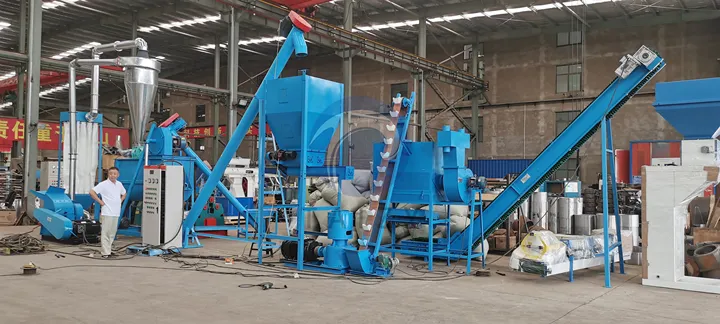

Configuration A: production line with cooling belt conveyor
Configuration A adopts a cooling belt conveyor after pelletizing. Fresh feed pellets are transported while naturally cooling during the conveying process.
Major equipment for option A
| Ausrüstung | Modell |
| Schlag- bzw. Hammermühle | 50-40 |
| Schneckenförderer | LS160 ＆ LS220 |
| Mischer | 9HWP500 |
| Feed pellet machine | ZLSG400 |
| Cooling machine | / |
| Förderer | QB380 |
| Weighting and packaging machine | DCS50 |

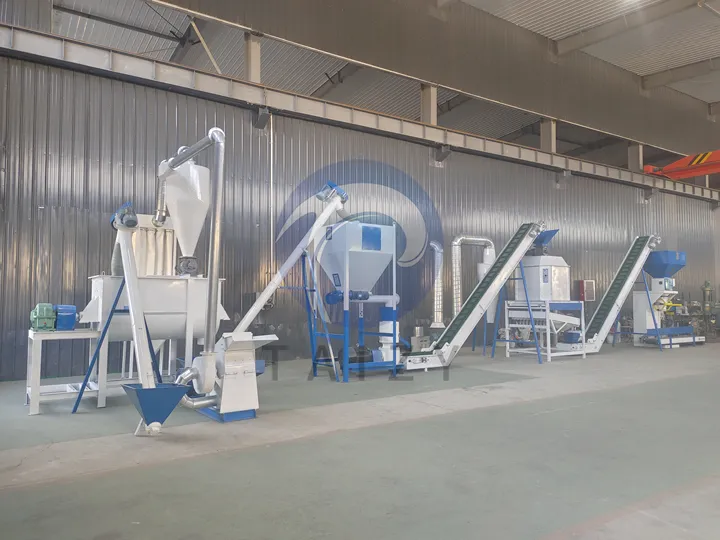

Configuration B: production line with counter-current cooler
Compared with Configuration A, this solution adopts the cooling section by replacing the cooling belt conveyor with a counter-current cooler.
The counter-current cooling system allows ambient air to flow in the opposite direction of the hot pellets, resulting in more efficient heat and moisture removal.
Major equipment for option B
| Equiment | Modell |
| Schlag- bzw. Hammermühle | MGFS 500 |
| Schneckenförderer | MGLX 160 & MGLX 220 |
| Storage bin | MGLC 1.0 |
| Animal feed pellet mill machine | MGPM 400 |
| Förderer | MGQB 380 |
| Counter-current Cooler | MGNL 1.1 |
| Weighting and packing machine | MGBZ 50 |

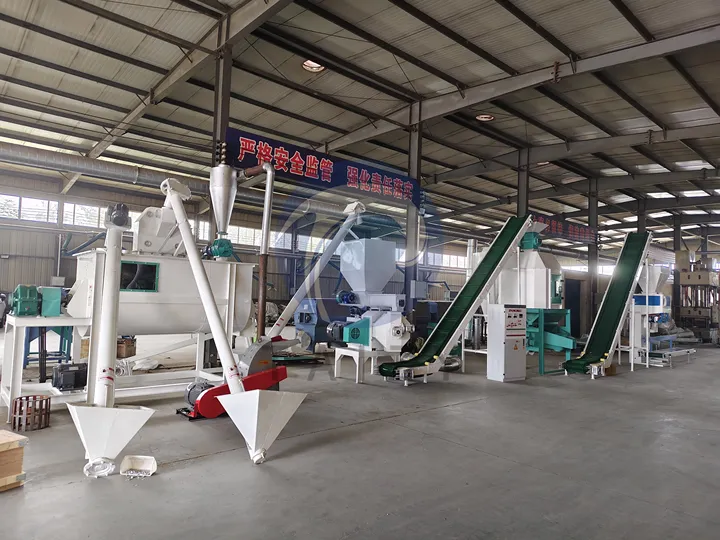

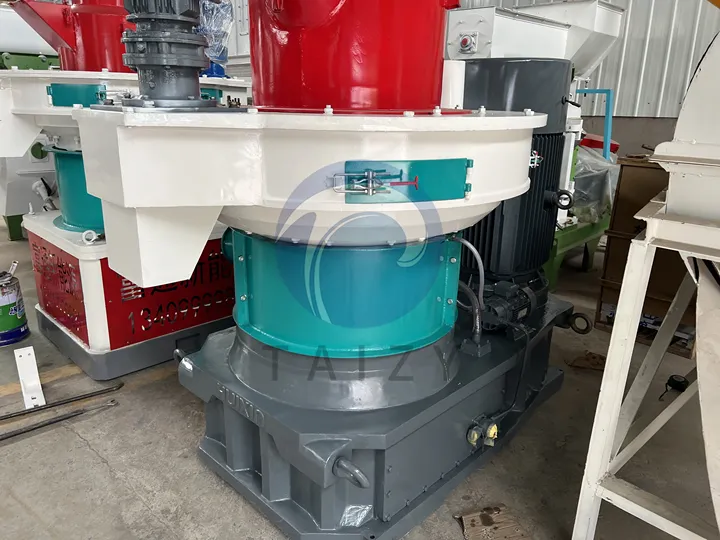

Configuration C: animal feed pellet mill machine production line with ring die feed pellet machine
Configuration C upgrades the pelletizing section by adopting a ring die feed pellet machine. Compared with standard pellet machines, the ring die design offers higher production efficiency, better pellet quality, and greater operational stability.
The production line still follows the same process of crushing, mixing, pelletizing, cooling, conveying, and packaging, while the upgraded pellet machine significantly enhances overall production performance.
Advantages of the animal feed pellet mill machine line
- High production efficiency: With a capacity of 1000kg/h, the production line can continuously produce feed pellets to meet commercial farming requirements.
- Uniform pellet quality: The optimized mixing and pelleting system ensures consistent pellet size, density, and nutritional content.
- Low-dust operation: The bag dust collector effectively captures dust generated during crushing and conveying, creating a cleaner production environment.
- Flexible feed formulation: The line can process various feed recipes for different animals and growth stages.
- Automated material handling: Multiple screw conveyors and feeding devices reduce manual labor and improve production efficiency.
Applications of the animal feed pellet mill machine
This feed pellet production line is widely used for producing feed for:
- Poultry feed production
- Pig feed manufacturing
- Cattle feed processing
- Sheep feed production
- Goat feed manufacturing
- Rabbit feed production
In addition to the applications mentioned above, feed pellet production lines are suitable for a variety of other fields. If you have any needs, please contact me to tailor a solution for you.
FAQ of animal feed pellet mill machine production line
Are there any requirements for the ratio of hay to powder?
No.
Can the length of the granules be adjusted?
Yes, there is a cutter at the discharge port that can control the length.
Can the production line be customized?
Yes, please contact me and tell me your requirements so I can design a suitable production line for you.
What raw materials can be processed?
Corn, soybean meal, wheat bran, rice bran, grass powder, and other feed ingredients.
Can the pellet size be customized?
Yes.
Contact us
If you are looking for the complete animal feed pellet mill machine production line, contact us today for detailed specifications, layout design, pricing information, and customized feed production solutions. Our experts are ready to help you build a successful feed pellet manufacturing project.
