A floating fish feed pellet making machine mixes and processes raw materials into fish feed pellets. Its production capacity ranges from 40 to 3,500 kg/h, which makes it suitable for fish feed factories and fish farms of varying sizes. The same machine, combined with different molds, can produce fish feed of varying sizes, suitable for carp, catfish, and tilapia farming.
The fish feed pellets processed by the floating fish feed extruder machine have high hardness, smooth surface, and internal maturation, which can improve the digestion and absorption of nutrients. The high-density pellets are moisture-resistant, making them easier to store and transport.
The pellet formation process can denature the pancreatic enzyme resistance factor in cereals and legumes to reduce the adverse effects on digestion. And also reduces all kinds of worm and digestive system diseases. Use this machine to create your exclusive feed recipe for healthier fish growth.

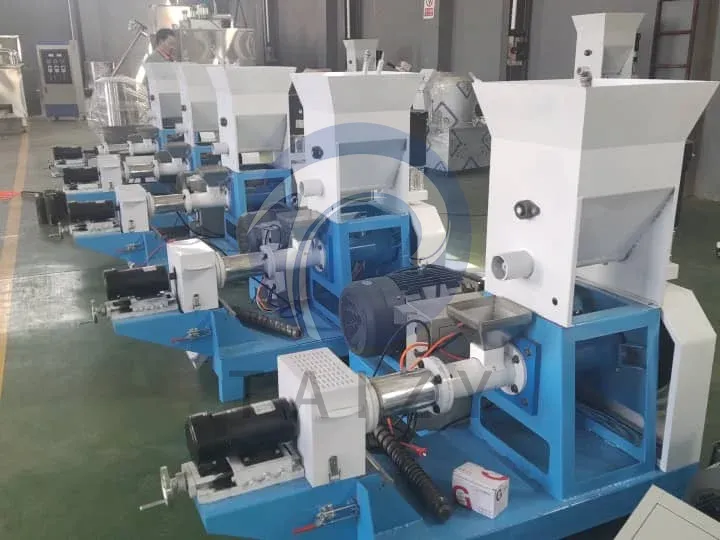

Brief introduction of fish feed pellet making machine

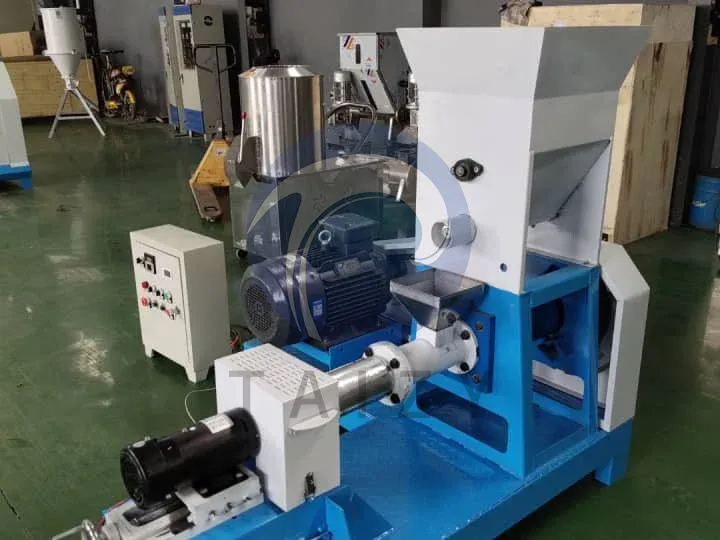

Taizy floating fish feed pellet making machine is a single screw extrusion type of extruding equipment, which can process various aquatic feeds. And, it can process not only a single raw material and a variety of materials. Besides, before processing the material, we should use the feed mixer to mix it well.
Our fish food production machine has the characteristics of low noise, high work efficiency, convenient operation, and complete functions. And we have different fish food manufacturing machine models for different capacity requirements. Customers can choose the model that best meets their specific production needs.

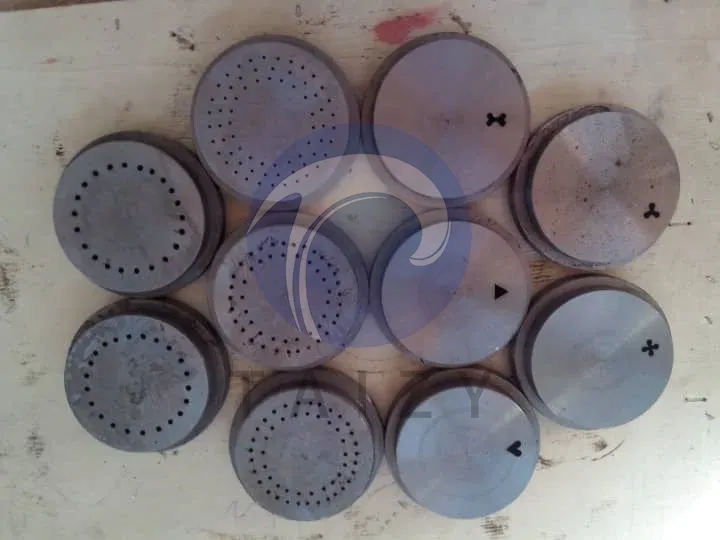

In addition, we also provide a variety of molds suitable for different fish. Each mold can be applied to the production of feed particles of different sizes. It is used to adapt to different stages of fish and the feeding preferences of different types of fish.
Advantages of the fish feed pellet manufacturing machine
- This fish feed pellet mill machine can adapt to different production requirements. Such as it can be used for raw material processing or special feed production in large and medium-sized feed mills. Small feed mill farms can also use this fish food processing machine as the main equipment to produce feed.
- We can adjust this floating fish feed pellet making machine to different materials and different production conditions. Because it can process different materials and make different sizes of feed.
- The feed pellet-making machine has a simple structure, and it is practical. The whole machine is exquisite in shape, simple in structure, and easy to operate and maintain.
- Low energy consumption and high maneuverability.
- The fish food pellet machine has wide applicability, a small footprint, and low noise.
- The fish pellet feed produced by the floating fish feed pellet machine can effectively prevent and control fish diseases.
- The floating fish feed extruder is equipped with various aperture molds. They are suitable for the granulation of different materials and can achieve the best effect.


If you don’t know which one is more suitable for your fish farming business or industrial fish feed pellets industry, you can consult us. Taizy service staff will provide you with free machine purchase suggestions based on your production requirements and main raw materials.
Using scope of fish feed extruder machine
The fish feed extruder machine can produce feed suitable for fish, shrimp, dogs, cats, etc. The raw materials can include cereals, meat, flour, soybean meal, rapeseed meal, and cotton meal, among others. It is widely used in large, medium, and small aquaculture, such as fish farming in ponds, fish farming in paddy fields, fish farming in tap water, cage farming, and captive fish farming in seawater.
Besides making fish feed pellets, this floating fish feed pellet making machine has a huge range of applications for making other feed. More than a dozen kinds of molds can be selected to produce feed pellets of different shapes and sizes. Expansion of the raw material by thermal expansion makes the product easy to digest and assimilate. We also offer a seasoning machine for adding attractants, vitamins, and minerals.

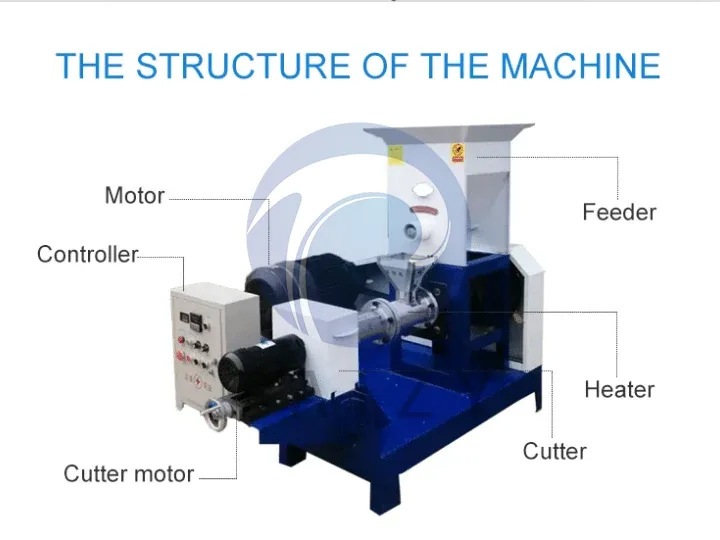

Structure of floating fish food manufacturing machine
The structure of the feed pellet machine mainly includes a feeder (bucket), extrusion device, power and transmission system, frame, electric control system, etc.

- The feeder (hopper) is of an automatic speed regulation type. And consists of a hopper, a pushing screw, a discharge pipe, and a shell.
- The extrusion device is the core part of the feed pellet machine. According to different uses, that is, extruding different materials and different discharging methods, we can select the corresponding combination.
- Electronic control system. Based on the power of the host and the feeding form, the configuration is also different. The floating fish feed pellet making machine has an independent control box, which can be placed on one side of the machine or fixed on the frame.
Working principle of fish feed pelletizer
Let’s take dry puffing as an example to show how this machine works:
- The material is propelled from the feed box into the compression chamber by the extrusion screw (or screws), where it undergoes initial extrusion and heating.
- It then continues to undergo varying degrees of extrusion and heating until discharge.
- The extruded feed creates long, uniformly thick strands, which are then sliced into preset sizes by a rapidly rotating cutter.
To achieve different discharge effects, the gap between the screw plug and the bullet head can be adjusted, and the template with different discharge hole diameters can also be replaced. The discharge hole diameter series is φ1mm, φ1.5mm, φ2mm, φ3mm, φ3.5mm, φ4mm, φ5mm, and φ6.8mm. It can be chosen from a variety of options.
Parameters of small fish food manufacturing machine
There are 6 types of fish feed pellet mills, which have different capacities, screw diameter and power choices.
Model | DGP-45 |
Capacity | 40-50kg/h |
Main power | 7.5kw |
Cutter power | 0.4kw |
Feed supply power | 0.4kw |
Screw Diameter | 40mm |
Size | 1260*860*1250mm |
Weight | 290kg |

Model | DGP-60 |
Capacity | 120- 150kg/h |
Main power | 15kw |
Cutter power | 0.4kw |
Feed supply power | 0.4kw |
Screw Diameter | 60mm |
Size | 1450*950*1430mm |
Weight | 480kg |

Model | DGP-70 |
Capacity | 180-250kg/h |
Main power | 18.5kw |
Cutter power | 0.4kw |
Feed supply power | 0.4kw |
Screw Diameter | 70mm |
Size | 1600*1400*1450mm |
Weight | 600kg |

Model | DGP-80 |
Capacity | 300-350kg/h |
Main power | 122kw |
Cutter power | 0.4kw |
Feed supply power | 0.4kw |
Screw Diameter | 80mm |
Size | 1850*1470*1500mm |
Weight | 800kg |

Model | DGP-100 |
Capacity | 500-550kg/h |
Main power | 18.537kw |
Cutter power | 1.1kw |
Feed supply power | 1.5kw |
Screw Diameter | 100mm |
Size | 2000*1600*1600mm |
Weight | 1500kg |

Model | DGP-120 |
Capacity | 600-700kg/h |
Main power | 55kw |
Cutter power | 1.1kw |
Feed supply power | 2.2kw |
Screw Diameter | 120mm |
Size | 2200*2010*1700mm |
Weight | 1850kg |

Model | DGP-135 |
Capacity | 750-800kg/h |
Main power | 75kw |
Cutter power | 1.5kw |
Feed supply power | 0.75kw |
Screw Diameter | 133mm |
Size | 2300*2150*1800mm |
Weight | 800kg |

Model | DGP-160 |
Capacity | 1000-1200kg/h |
Main power | 90kw |
Cutter power | 2.2kw |
Feed supply power | 1.5kw |
Screw Diameter | 160mm |
Size | 3050*1950*1750mm |
Weight | 3600kg |

Model | DGP-200 |
Capacity | 1800-2000kg/h |
Main power | 132kw |
Cutter power | 2.2kw |
Feed supply power | 2.2kw |
Screw Diameter | 200mm |
Size | / |
Weight | / |

Why use a floating fish feed pellet making machine?
- Pellet-feed fish farming has less pollution to water quality, which is convenient for water quality management. So, it is beneficial for the improvement of fish carrying capacity in water bodies.
- Adopting this fish farming method in areas with difficult water sources can greatly increase the farming output.
- Pellets stay in the water for a short time and lose fewer nutrients, which is beneficial to the digestion and absorption of fish. Therefore, the utilization rate of feed is improved, and the feed coefficient is reduced.
Successful case of fish feed pellet mill
Customers from Belgium leave their contact details by browsing our floating fish feed pellet making machine website. So, our sales managers communicate with customers via WhatsApp. In the process of communication, we learned that the customer needs a fish food pellet machine with an output of 40kg per hour. And the power of the machine is a diesel engine to add to his small fish feed production facility.

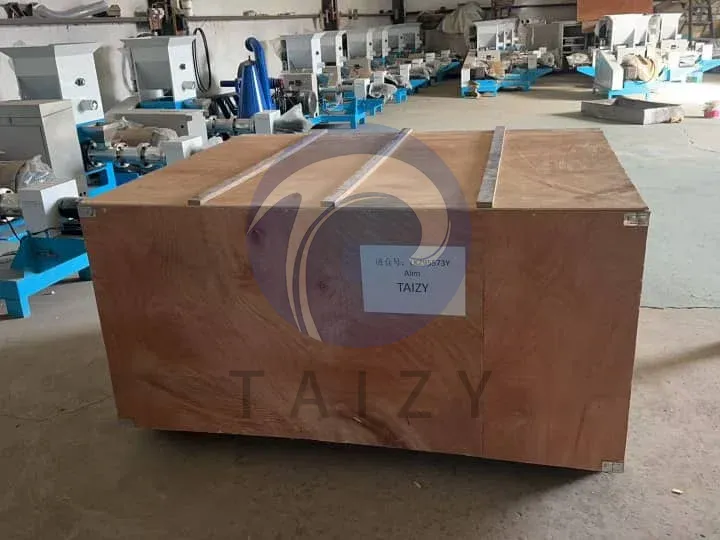

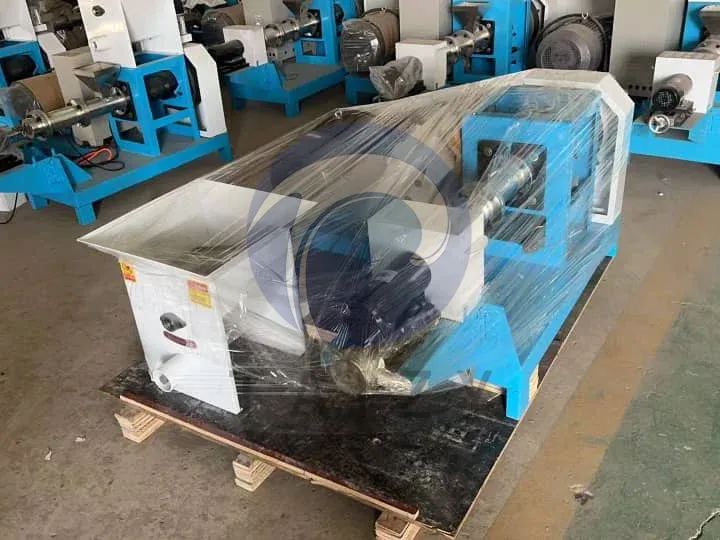

After fully understanding his needs, we recommended the DGP-45 feed pelleting machine, which perfectly met his requirements in terms of power and output. Since our factory already had finished products, we shipped it directly. Below is an image of the machine’s packaging and shipping.
Our feed pelleting machine have been used by feed mills and fish farms worldwide, including in Nigeria, Malaysia, Peru, and Ghana. If you share the same needs and are looking to upgrade your machine or expand production, please don’t hesitate to contact us.
