Máy Gia Vị Tám Giác | Máy Trộn Bột Snack

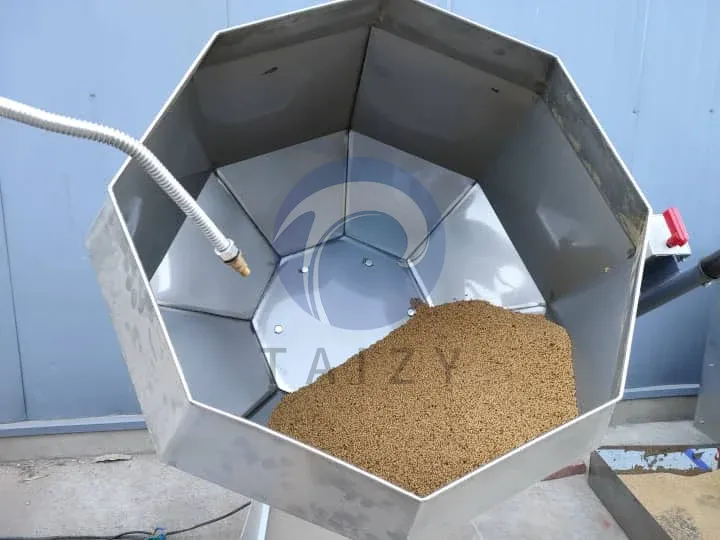

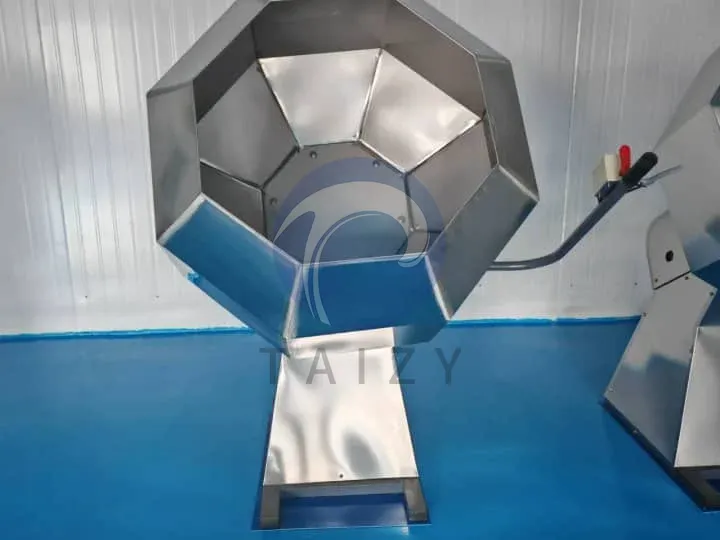

Octagonal seasoning machine is a flavoring and material mixing machine. It adds condiment and some oil into the material to increase the flavor of food. It can generally season snacks, pet food, and feed pellets, etc., to enhance the color and taste, which is more conducive to sales.

The material of the machine is SUS304 stainless steel, which can effectively ensure food safety. Our machine also uses automatic oiling and automatic feeding equipment to achieve a high degree of automation. It can produce 100-400kg per hour effectively.

The key features of the octagonal seasoning machine

• Octagonal flavoring machine ball design for octagonal shape, to avoid the ball flavoring machine raw materials rolling, fully stir the raw materials.
• The flavoring machine barrel doesn’t have dead corners; it’s more convenient to clean and easy to use.
• We adopt automatic oiling and automatic feeding equipment to achieve a high degree of automation, which will save labor power and improve efficiency.

The specification and parameters of the mixer

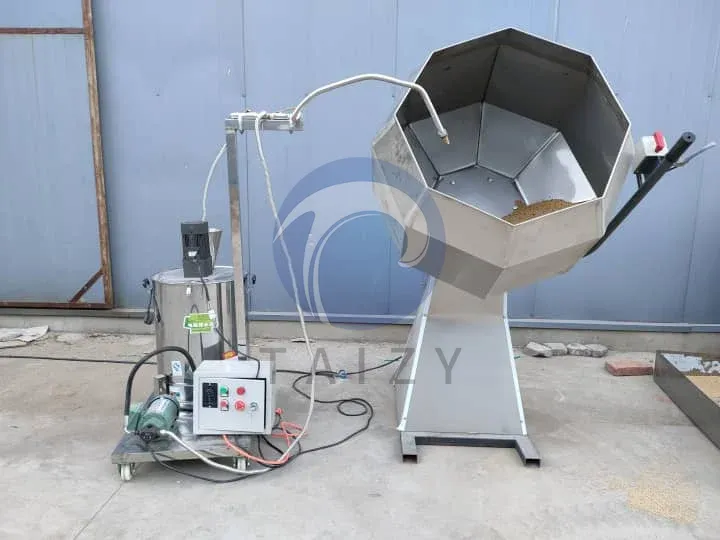

Structure of automatic seasoning machine

The equipment consists of support shelf, drum, drum-driven system, dusting system, dusting-driven system, distribution board, and other main parts. Compared with the drum seasoning machine, the star anise seasoning machine takes up less space.

Detailed operation steps of the seasoning mixer

• Connect the equipment to the power supply. The equipment adopts 220V power input, output drum motor is 380V, and duster motor is 220V.
• Start the drum motor, and the drum will start slowly at the normal speed. Start the duster motor, and the duster starts working.
• The raw materials shall be continuously fed into the flavoring machine through a conveyor or manually slowly from the feeding port.
• Open the powder motor to make the seasoning evenly sprayed in the roller.
• Check the operating parts and confirm the normal operation before work.
• If the speed is too high, you can rotate the inverter knob to the left, and the speed can be variable and slow. The minimum speed shall not be lower than 70% of the speed.
• If the material moves forward too fast in the drum, the inclination of the drum can be reduced; if it moves too slowly, the inclination of the drum can be increased.

Nguyên lý làm việc của máy trộn sao hồi

The materials fall into the roller, then the stirring leaf drives materials upward. They fall from above, and mix with the seasoning powder.

During the working process, there is always seasoning in the powder duster, and it should be added in time when the seasoning is found to be insufficient.

This machine is always used as part of the fish feed pellet making line to finish the final season work. If you want to know more about our production line or have any questions, contact me to have a consultation.
